YX7833

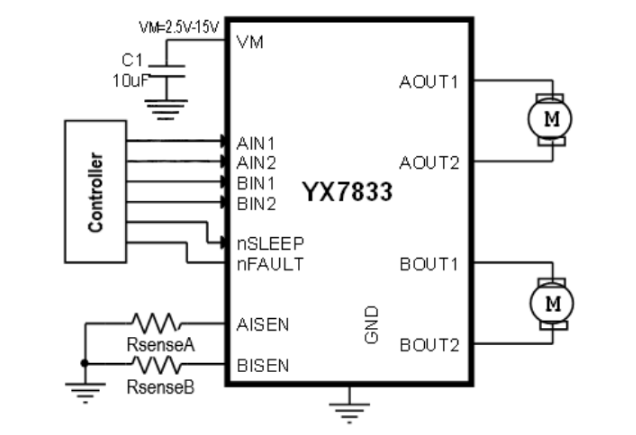

The YX7833 device provides a dual bridge motor driver solution for toys, printer mechatronic applications.
-
Wide 2.5V-to-15V Input Voltage Range
-
Two Internal Full-Bridge Drivers, drive one or two brush DC motors, one bipolar stepper motor, Solenoids and other inductive loads
-
Low MOSFET On Resistance ( HS:500mΩ; LS:500 mΩ)
-
Internal Charge Pump for the High-Side Driver
-
High output Current Capability 1A RMS, 1.6A Peak per H-Bridge, 2A RMS in Parallel Mode (at VVM=5V, +25℃）
-
PWM control interface
-
Supports 1.8V, 3.3V and 5V logic inputs
-
Integrated current regulation
-
Low-power sleep mode (<60nA at VVM=5V,TJ=25℃)
-
Integrated protections feature
-
VM undervoltage lockout
-
Auto-retry overcurrent protection
-
Thermal shutdown
-
Fault Indication Pin (nFAULT)
-
Thermally Enhanced Surface-Mount Packages
-
16-pin ETSSOP with PowerPAD, 5.0×6.4 mm
-
16-pin WQFN with PowerPAD, 3.0×3.0 mm
-
Robotics
-
Point-of-Sale Printers
-
Portable Printers
-
Toys
-
Video Security Cameras
